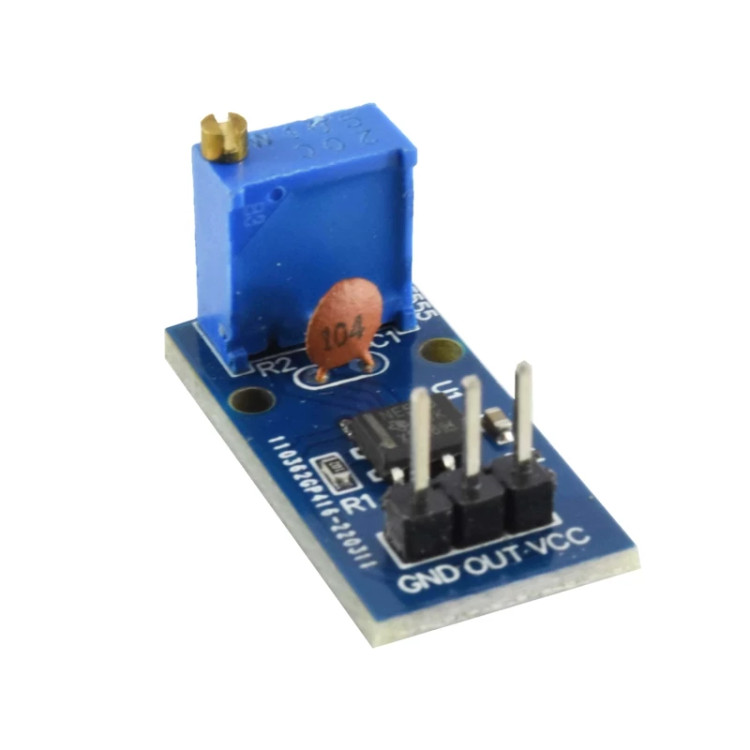

ماژول تولید پالس مربعی NE555

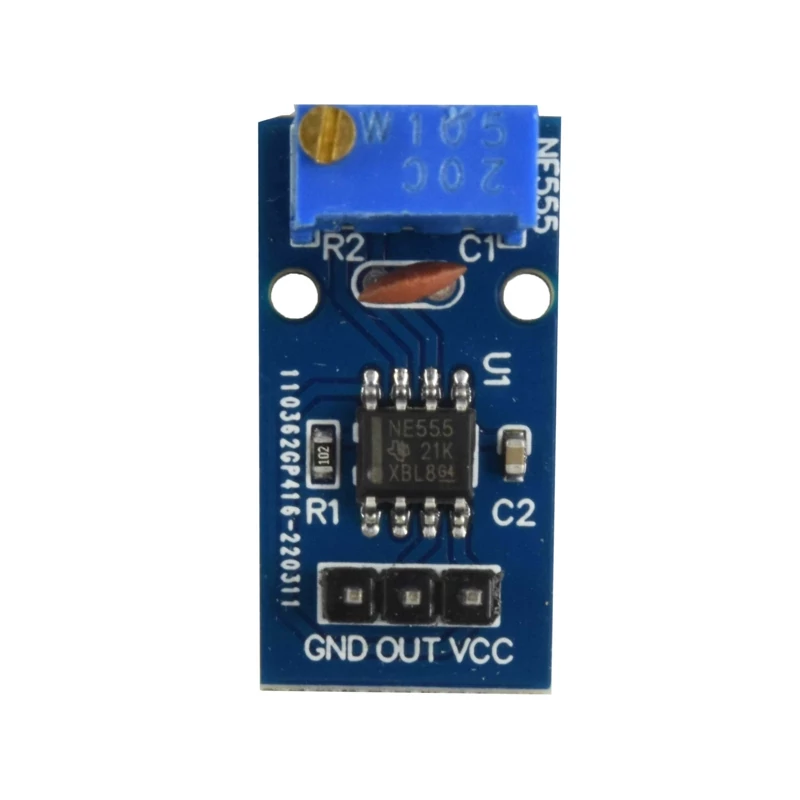

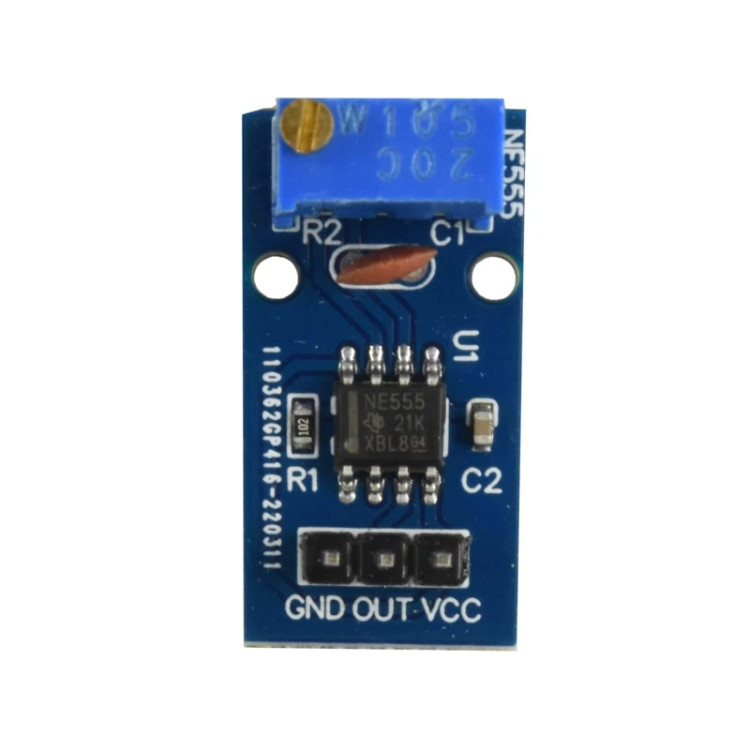

ماژول تولید پالس مربعی NE555 یک مولد فرکانس قابل تنظیم با استفاده از آی سی تایمر 555 می باشد و در انواع مدارات قابل استفاده است .تأمین و واردات قطعات هایتک را به ما بسپارید. This is a square wave pulse generator module based on the ubiquitous NE555 timer IC. The module can be powered from a wide power supply range (4.5-5 to 12V) and will produce a continuous square wave output between 15Hz to 24KHz which can be set by on on-board multi-turn potentiometer. Useful for applications where an approximate frequency clock source is required such as for stepper motor step generation tone generation etc. Specification  NE555: Working voltage: 5 to 12V Supply current: 3mA at 5V Vcc Min freq (approx): 15Hz 49% duty cycle at 5V Vcc Max freq (approx): 24KHz 89.4% duty cycle at 5V Vcc Output voltage: 4.5V at 5Vcc / 11.5V at 12Vcc PRODUCT DETAILS Onboard NE555 IC Board size: 29 (mm) x12 (mm)
