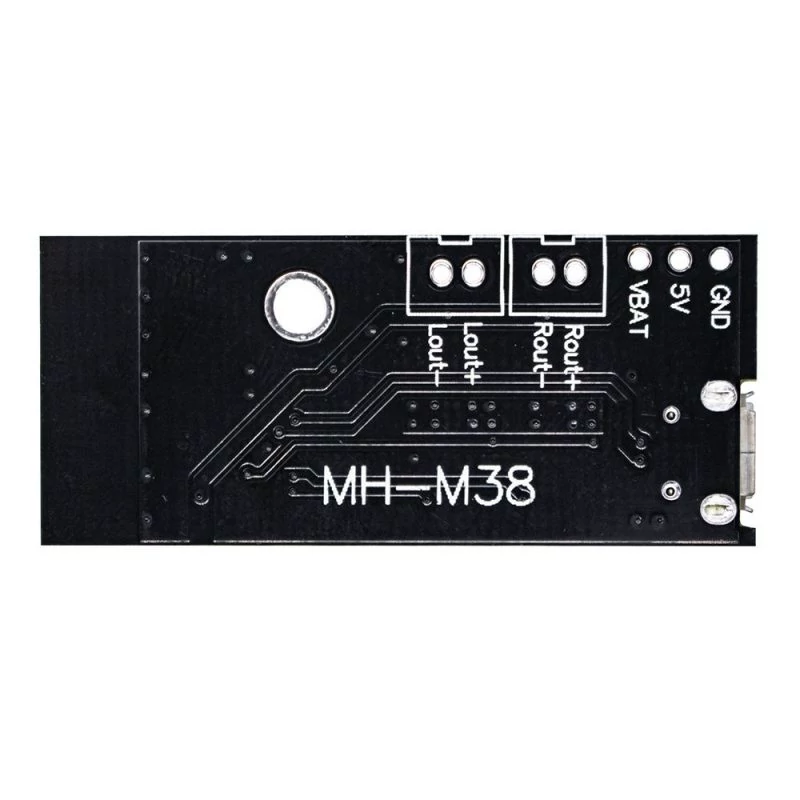

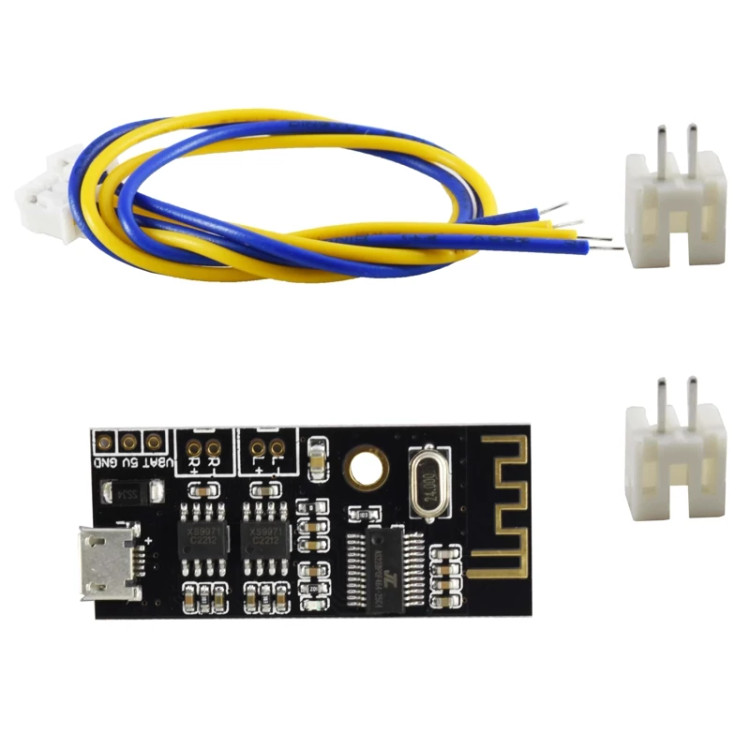

ماژول بلوتوث صوتی MH-M38 دارای 2 خروجی آمپلی فایر 5W

ماژول بلوتوث صوتی MH-M38 دارای 2 خروجی آمپلی فایر 5W یک برد با ابعاد کوچک با کیفیت بالا مورد استفاده در جاهای مختلف و انواع ضبط های قدیمی می باشد . 2 خروجی مشخصات ماژول صوتی MH-M38 دارای 2 خروجی آمپلی فایر 5W : MH-M18/M28/M38 is a low-power .  Bluetooth design solution that supports the  . latest Bluetooth 4.2 transmission, two-channel stereo lossless playback .  and Bluetooth wireless transmission when the module is connected to Bluetooth, which is very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.Widely used  . in a variety of Bluetooth audio reception  .  a variety of audio DIY modification.For your different needs, we offer 3 versions for you to choose from: ویژگی های ماژول بلوتوث MH-M38 دارای 2 خروجی آمپلی فایر 5W : Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth. module blue indicator light: When the Bluetooth is not connected, the indicator light flashes quickly; When the Bluetooth connection is on, the indicator light is always on; The following is an introduction to each version: Power supply: You can directly use the MICRO USB .  Android cable 5V for direct power supply . or you can also connect 5V power supply or 3.7V lithium battery (as shown below). Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND. The maximum operating current is 5V2A. It is recommended to use a regulated 5V2A power supply for better sound quality. Support USB sound card, free drive (plug and play). Connect the module to the computer with a USB cable, and the computer can play music through the module amplifier output. Audio output: output left and right stereo audio signals, which can be connected to two 2-8 ohm, 3-5W speakers, and 4 Euro 5W speakers. 5W power amplifier on board :This product has its own dual 5W power amplifier circuit, and must not be connected to another amplifier! The outputs of the two amplifiers may not be  . connected in parallel or the negative  . poles may be connected together . otherwisethe power amplifier chip may be damaged .
