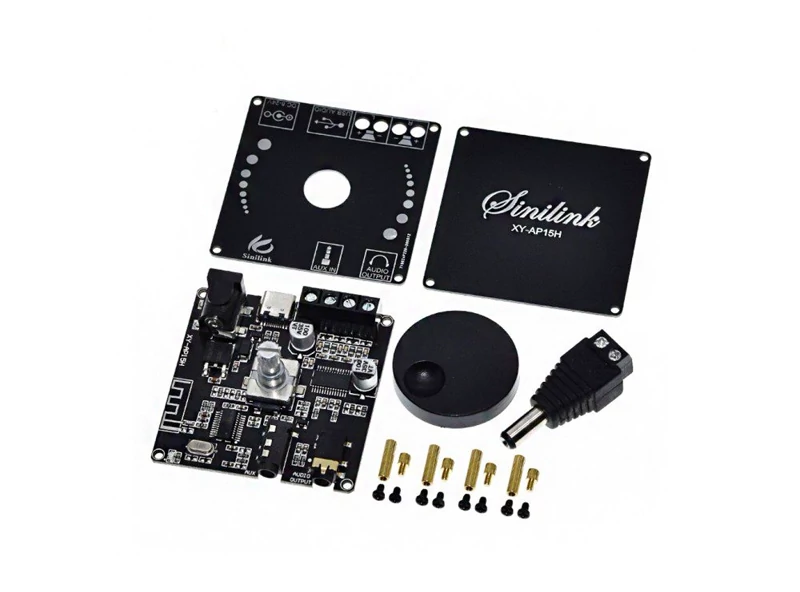

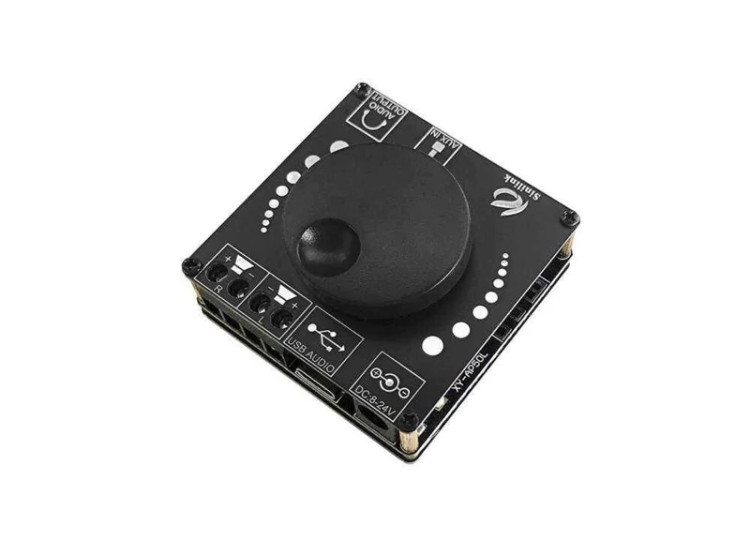

ماژول آمپلی فایر بلوتوثی استریو XY-AP15H

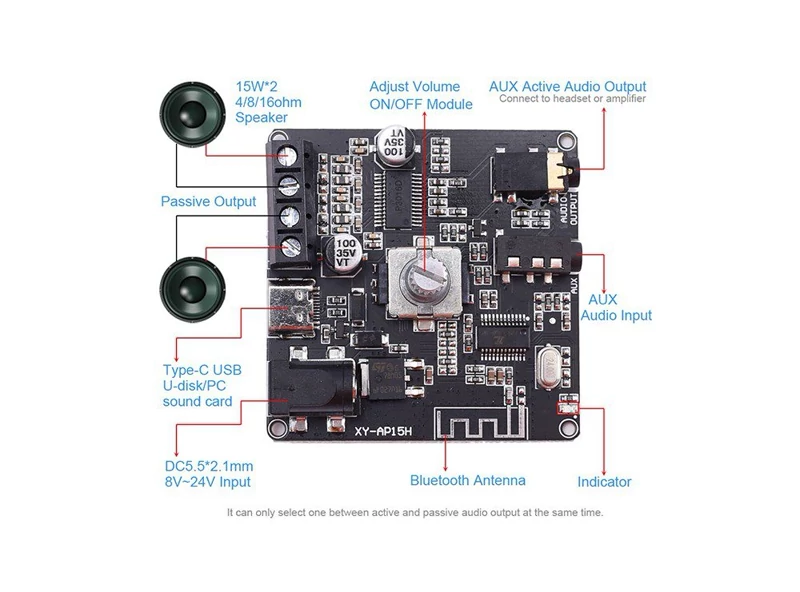

ماژول آمپلی فایر بلوتوثی استریو XY-AP15H یک برد حرفه ای 2 کانال 20 وات دارای بلوتوث، AUX ، ولوم و ورودی USB می باشد. مشخصات ماژول آمپلی فایر بلوتوثی استریو XY-AP15H : XY-AP15H is a high-power Stereo Bluetooth Audio module. Dual channels audio signal output. Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders. It can work with APP Sinilink which can display can monitor the current voice source and switch Equalizer. Use the power amplifier board as far away as possible from the WIFI signal (router) The recommended supply voltage is DC 8~24V, if it exceeds 26V, the chip will burn. The power supply does not exceed 12V when connected to a 4ￎﾩ speaker and does not exceed 24V when connected to an 8ￎﾩ speaker The power supply current is recommended to be above 2A. The working power of the module exceeds 20W*2, and a heat sink is required The speaker cable should not be too long and ensure that it is suitable within 1 meter Pay attention to static electricity protection. Discharge the static electricity on your hands before touching the power amplifier board to prevent static electricity from breaking down the chip. Bluetooth chips are more sensitive to static electricity. It is recommended to adapt the speaker with a rated power of 30W and above to avoid the speaker from heating and burning ویژگی های ماژول آمپلی فایر بلوتوثی استریو XY-AP15H : Model: XY-AP15H Audio input: Bluetooth + AUX+USB flash disk+Computer USB sound card (plug and play) Power supply: 8-24V (high power recommended high voltage) Adapter speaker:30-200W￯ﾼﾛ4-8ￎﾩ Channel: left and right(stereo) Bluetooth version:5.0(>15 meters without occlusion) Protection mechanism: overvoltage,under-voltage,overheating,DC detection,short circuit protection Size: 52*52mm Output power 10W+10W at 12V 8ohm Output power 16W+16W at 12V 4ohm Output power 15W+15W at 16V 8ohm Output power 20W+20W at 16V 4ohm Output power 20W+20W at 20V 8ohm Output power 20W+20W at 20V 4ohm Instruction 1>. Choose the right speaker and connect as shown in wiring diagram. 2>. Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing. 3>. Turn ON Bluetooth in phone. 4>. Select Bluetooth device ‘XinYi’ in your Bluetooth device listing. 5>. LED indicator will keep ON and it means that module is successfully connected and is waiting for playing. 6>. Module will playing music after select music in phone.LED indicator will keep slowly blinking. 7>. Increase or Decrease volume by adjust potentiometer. 8>. Press potentiometer to play or pause music. Applications Modified speaker Amplifier equipment Car Bluetooth device Package Includes 1pcs XY-AP15H 15W*2 Bluetooth Amplifier Module 1pcs 6mm knob cap 1pcs DC-005 power adapter 2pcs shell 4pcs M2*11mm Copper column 4pcs M2*3+5mm Copper column 8pcs M2*5mm screw
