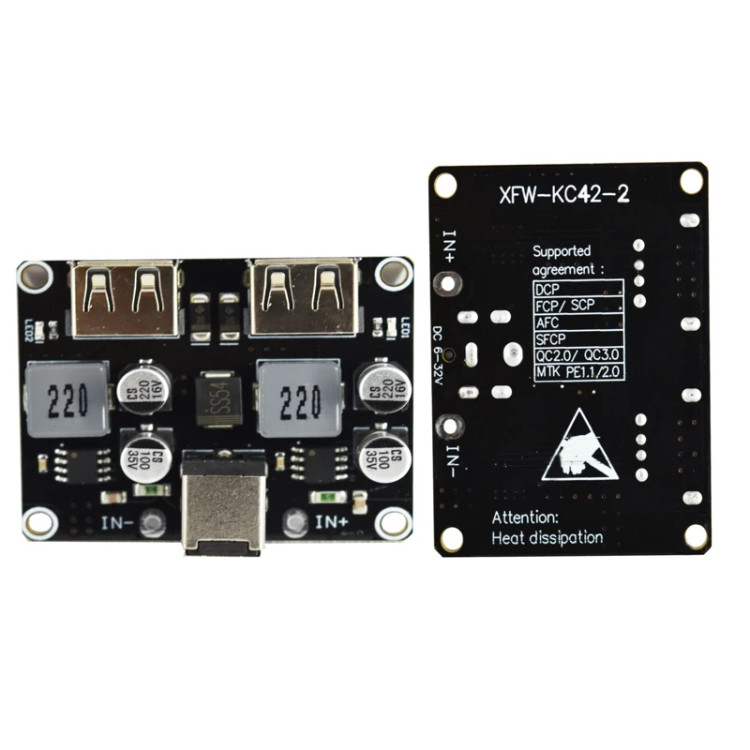

ماژول فست شارژ 2 خروجی 24 وات مدل XFW-KC42-2

ماژول فست شارژ 2 خروجی 24 وات مدل XFW-KC42-2 با وزن 19.71 گرم قابل استفاده در مدارات الکتریکی و الکترونیکی می باشد. ویژگی ها: 24 وات وزن 19.71 گرم Feature: 1. INPUT AND OUTPUT: 2 way DC converter module, the input voltage is DC6-32V, the output voltage range is 3-12V, the operation is efficient and reliable. 2. GOOD PROTECTION: Output voltage wire compensation function, with overvoltage, undervoltage, overcurrent, short circuit and over temperature protection. 3. SUPPORT PROTOCOL: Support for QC2.0, OC3.0, for MTK PE1.1 2.0, for iOS, for AFC, for FCP, for SFCP fast charging protocols. 4. WIDE APPLICATION: Used for solar panel to mobile phone charging, car charging, driving recorder power supply, household power supply, fast charging adapter, etc. 5. EASY TO INSTALL: Includes 2pcs voltage boards, which has compact structure, with standard mounting holes for easy installation and operation. Specification: Item Type: Converter Module Supported Protocols: QC2.0, OC3.0, for MTK PE1.1 2.0, for iOS, for AFC, for FCP, for SFCP Input Voltage: DC6-32V (DC outer diameter 5.5mm / 0.22in, inner diameter 2.1mm / 0.08in) Output Voltage: Default 5V, adjustment range is 3-12V according to the fast charging protocol Output Capacity: Single port rated current 2.4A, rated power 24W Protection Measures: Output overvoltage protection, limit the output voltage not to exceed 13V (in case of chip failure); input with fuse. 5V output with line compensation function, when the output current increases, the output voltage will be slightly increased to compensate for line loss Uses: Solar panel to mobile phone charging, car charging transformation, driving recorder power supply, household power supply, smart power strip transformation, fast charging adapter توان : 24 w وزن : 19.71 گرم
